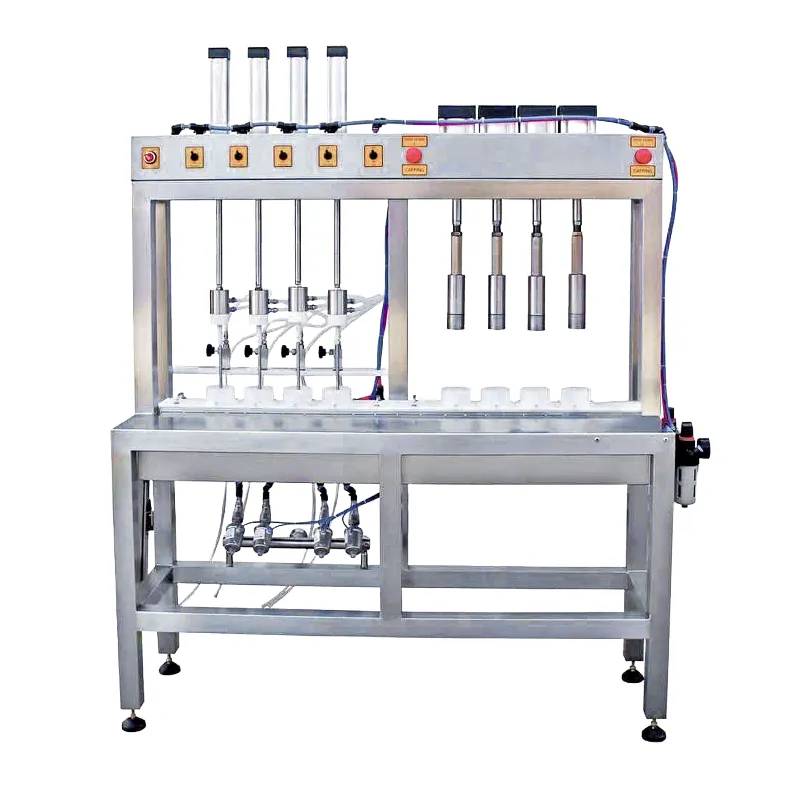

4 Heads Manual Beer Bottling and Capping Machine
This 4-head manual beer bottling and capping machine is designed for craft breweries, microbreweries, brewpubs, and small-scale beer production lines. It combines bottle filling and capping in one compact unit, helping you package beer efficiently while maintaining carbonation and minimizing beer loss.
Key Features
-
2-in-1 operation: Bottle filling and capping can be completed on the same machine
-
PLC automatic control: Parameters are adjustable through the PLC system
-
CO2 pressurizing and vacuumizing: Helps protect beer flavor and carbonation
-
Unique pressure maintaining system: Ensures stable filling performance
-
Pressure compensator: Provides a consistent and reliable filling process
-
Low beer loss: Minimizes waste during filling
-
Compact design: Space-saving and suitable for small breweries
-
Easy operation: Manual bottle loading and unloading with automatic filling/capping control
Working Process
Fix the bottle on the filling station → CO2 pressurizing → Vacuumizing → CO2 pressurizing again → Beer filling → Pressure stabilization → Pressure relief → Stop filling → Move bottles to capping station → Capping → Take out the finished bottles
Technical Specifications
Model: GM6-9
Machine Type: 4-head beer bottle filler and capper
Dimension: 1.35 × 0.45 × 1.56 m
Weight: 50 kg
Capacity: 80 pcs/h*
Main Material: SUS304
Control System: Siemens PLC1200
Air Regulator: 0.5–0.6 MPa
CO2 Regulator: 0.15–0.2 MPa
Beer Source Pressure: 0.15–0.2 MPa
Connection Type: 1.5″ Tri-clamp
Bottle Type: 300ml / 500ml
Filling Part with Flowmeter: No
Residual Liquid Detection: No
Filling Procedure: Put bottle on station → CO2 filling → beer filling → stop
Capping Procedure: Put bottle on station → capping → stop
*Capacity depends on bottle size, operator skill, and working conditions.
**Please confirm actual power supply and air consumption requirements with our sales team before ordering.
Applications
-
Craft breweries
-
Microbreweries
-
Brewpubs
-
Beer bottling workshops
-
Small beverage production lines
Why Choose This 4 Heads Manual Beer Bottling and Capping Machine?
For small breweries, bottling is often one of the most important steps in packaging. A good beer bottling machine should not only fill bottles quickly, but also protect carbonation, reduce oxygen exposure, and minimize beer loss.
This 4-head manual bottling and capping machine is built with a stable pressure maintaining system and PLC control, making it a practical choice for breweries that need flexible, small-batch bottling without investing in a fully automatic high-speed line.
