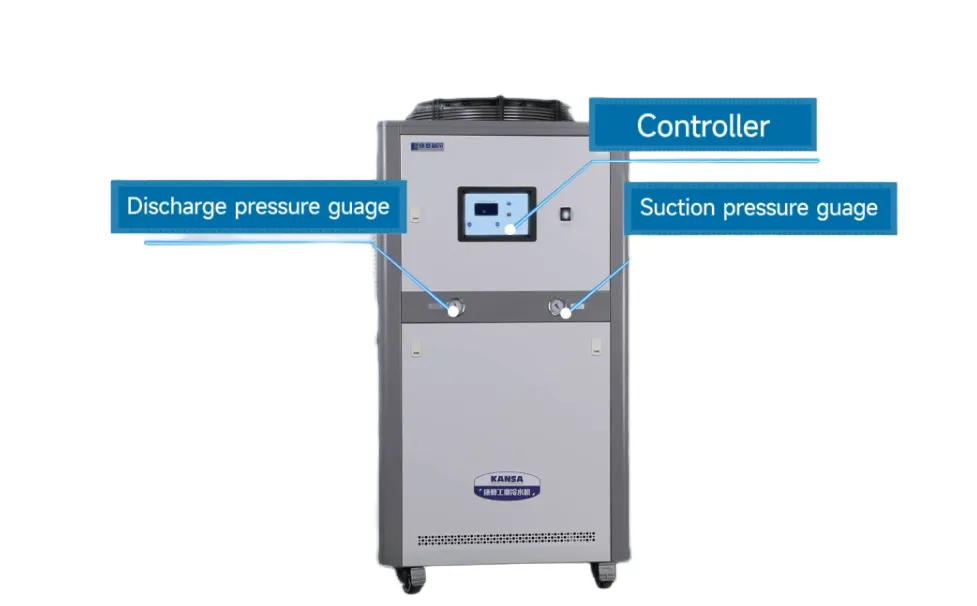

Air cooled chiller for brewery

Product Series: Kangsai ICA Series Air-Cooled Glycol Water Chiller

Power Source: 220V/1/50Hz (ICA-0.6 to ICA-2) / 380V/3/50Hz (ICA-3 to ICA-10)

Product Series: ICA Series Air-Cooled Glycol Water Chiller

Power Source: 220V/1/50Hz (ICA-0.6 to ICA-2) / 380V/3/50Hz (ICA-3 to ICA-10)

Compressor Type: Rotor type (ICA-0.6 to ICA-2) / Scroll type (ICA-3 to ICA-10)

Pump Type: High-head pump with stainless steel options

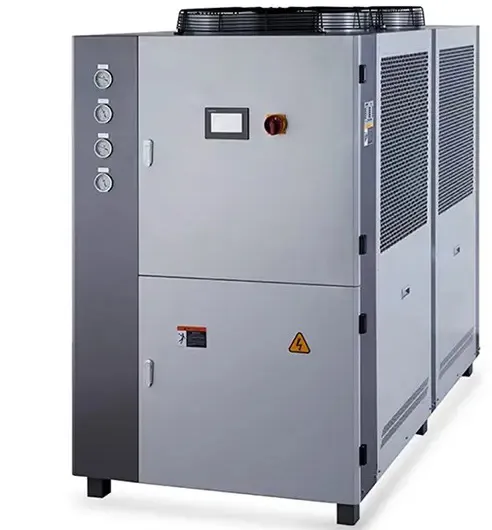

                                                                         Air cooled chilller

Air cooled chiller Model Specifications

Model ICA-0.6
Cooling Capacity: 1.6 kW (1.4 x10³ kcal/h)
Total Power Input: 0.9 kW
Rated Current: 4.6 A
Compressor Power: 0.5 kW
Pump Power / Head: 0.25 kW / 36 m
Water Flow Rate: 0.28 m³/h (4.6 L/min)
Tank Capacity: 12 L
Water Pipe Size: DN 15
Noise Level: 56 dB(A)
Weight: 50 kg
Dimensions (L×W×H): 420 × 420 × 815 mm

Model ICA-1
Cooling Capacity: 2.7 kW (2.3 x10³ kcal/h)
Total Power Input: 1.2 kW
Rated Current: 5.9 A
Compressor Power: 0.8 kW
Pump Power / Head: 0.25 kW / 34 m
Water Flow Rate: 0.46 m³/h (7.7 L/min)
Tank Capacity: 20 L
Water Pipe Size: DN 15
Noise Level: 58 dB(A)
Weight: 68 kg
Dimensions (L×W×H): 500 × 500 × 950 mm

Model ICA-2
Cooling Capacity: 5.2 kW (4.5 x10³ kcal/h)
Total Power Input: 2.2 kW
Rated Current: 11.3 A
Compressor Power: 1.6 kW
Pump Power / Head: 0.37 kW / 26 m
Water Flow Rate: 0.89 m³/h (14.8 L/min)
Tank Capacity: 35 L
Water Pipe Size: DN 15
Noise Level: 58 dB(A)
Weight: 108 kg
Dimensions (L×W×H): 600 × 600 × 1160 mm

Model ICA-3
Cooling Capacity: 9.1 kW (7.8 x10³ kcal/h)
Total Power Input: 2.9 kW
Rated Current: 8.2 A
Compressor Power: 2.3 kW
Pump Power / Head: 0.37 kW / 24 m
Water Flow Rate: 1.6 m³/h (26.7 L/min)
Tank Capacity: 60 L
Water Pipe Size: DN 20
Noise Level: 60 dB(A)
Weight: 140 kg
Dimensions (L×W×H): 680 × 680 × 1360 mm

Model ICA-5
Cooling Capacity: 15.0 kW (12.9 x10³ kcal/h)
Total Power Input: 5.3 kW
Rated Current: 11.7 A
Compressor Power: 4.2 kW
Pump Power / Head: 0.55 kW / 28 m
Water Flow Rate: 2.6 m³/h (43.3 L/min)
Tank Capacity: 70 L
Water Pipe Size: DN 25
Noise Level: 61 dB(A)
Weight: 185 kg
Dimensions (L×W×H): 750 × 750 × 1480 mm

Model ICA-6
Cooling Capacity: 18.0 kW (15.5 x10³ kcal/h)
Total Power Input: 6.5 kW
Rated Current: 12.2 A
Compressor Power: 5.1 kW
Pump Power / Head: 0.75 kW / 33 m
Water Flow Rate: 3.1 m³/h (51.7 L/min)
Tank Capacity: 70 L
Water Pipe Size: DN 25
Noise Level: 62 dB(A)
Weight: 210 kg
Dimensions (L×W×H): 750 × 750 × 1480 mm

Model ICA-8
Cooling Capacity: 23.0 kW (19.8 x10³ kcal/h)
Total Power Input: 8.4 kW
Rated Current: 20.0 A
Compressor Power: 6.9 kW
Pump Power / Head: 0.75 kW / 30 m
Water Flow Rate: 4.0 m³/h (66.0 L/min)
Tank Capacity: 100 L
Water Pipe Size: DN 40
Noise Level: 64 dB(A)
Weight: 260 kg
Dimensions (L×W×H): 1350 × 680 × 1360 mm

Model ICA-10
Cooling Capacity: 29.5 kW (25.4 x10³ kcal/h)
Total Power Input: 10.5 kW
Rated Current: 23.4 A
Compressor Power: 8.7 kW
Pump Power / Head: 0.75 kW / 27 m
Water Flow Rate: 5.1 m³/h (85.0 L/min)
Tank Capacity: 135 L
Water Pipe Size: DN 40
Noise Level: 65 dB(A)
Weight: 310 kg
Dimensions (L×W×H): 1510 × 750 × 1480 mm
