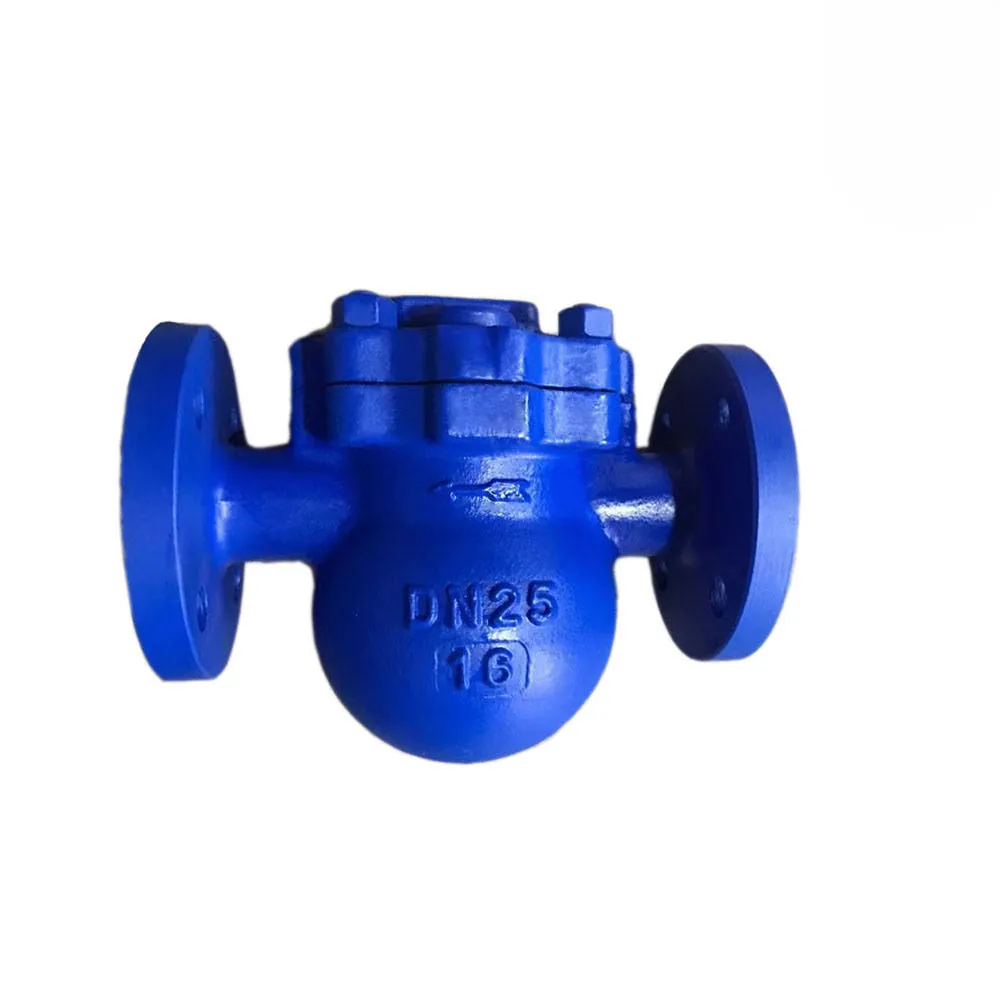

Float Steam Trap for Brewhouse Tanks and Hot Water tank

This float steam trap is designed for steam-heated equipment in the brewhouse and hot water systems, including mash tun, brew kettle, hot water tank and heat exchanger. It uses a float-and-lever mechanism to discharge condensate continuously, helping maintain stable heating performance and prevent water hammer and steam lock. Body material is available in cast steel or stainless steel to suit different water quality and working conditions — cast steel for standard steam service, stainless steel for higher corrosion-resistance requirements.

Technical Specifications

Product Type: Float Steam Trap
Applicable Medium: Steam
Nominal Diameter: DN15 ~ DN150
Nominal Pressure: PN0.6 ~ 2.5 MPa
Working Temperature: -20℃ ~ 425℃
Body Material: Cast Steel / Stainless Steel
Installation: Horizontal installation
Applications: Mash tun, brew kettle, hot water tank, heat exchanger
