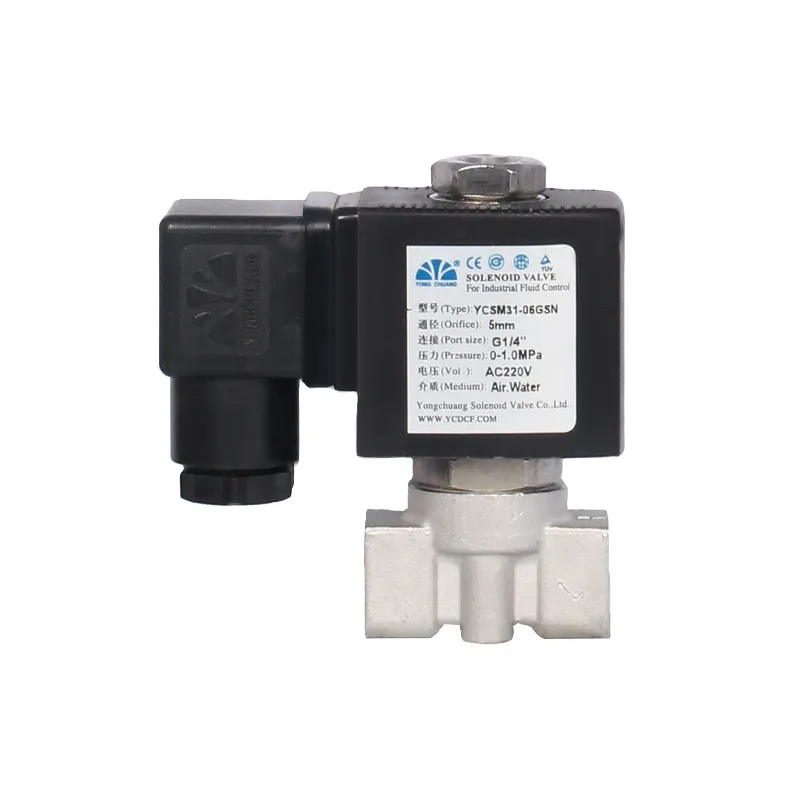

Stainless Steel High Speed Electric Solenoid Valve

Features

Direct acting mechanism.

Starts from 0 bar, low power consumption.

Compact design to save space.

Industrial machinery automation / Air compressors.

Chemical printing and dyeing / Blow molding industry.

Coffee machines, brewery,beverage machines, and water purifiers.

Sterilization equipment for medical devices.

Port Size: G(NPT) 1/8″, 1/4″, 3/4″,3/8″, 1/2″(customized)

Orifice Size: 1.0, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6, 10 mm

Pressure Range: 0.0 MPa ~ 3.0 MPa

Body Material: SS304

Medium: Air, water, steam, oil，glycol water

Seal Material Options

NBR: -10°C ~ 80°C

EPDM: -30°C ~ 120°C

VITON: -30°C ~ 150°C

PTFE: -60°C ~ 200°C

Electrical Parameters

Voltage: DC – 12V, 24V, 36V | AC – 24V, 110V, 120V, 220V, 240V (60Hz or 50Hz)

Coil Model: YCSM31 (S91B), YCSM32 (S91BT)

Power: 22VA (AC), 17W (DC)

Protection: IP65, 100% ED (Continuous Duty)
