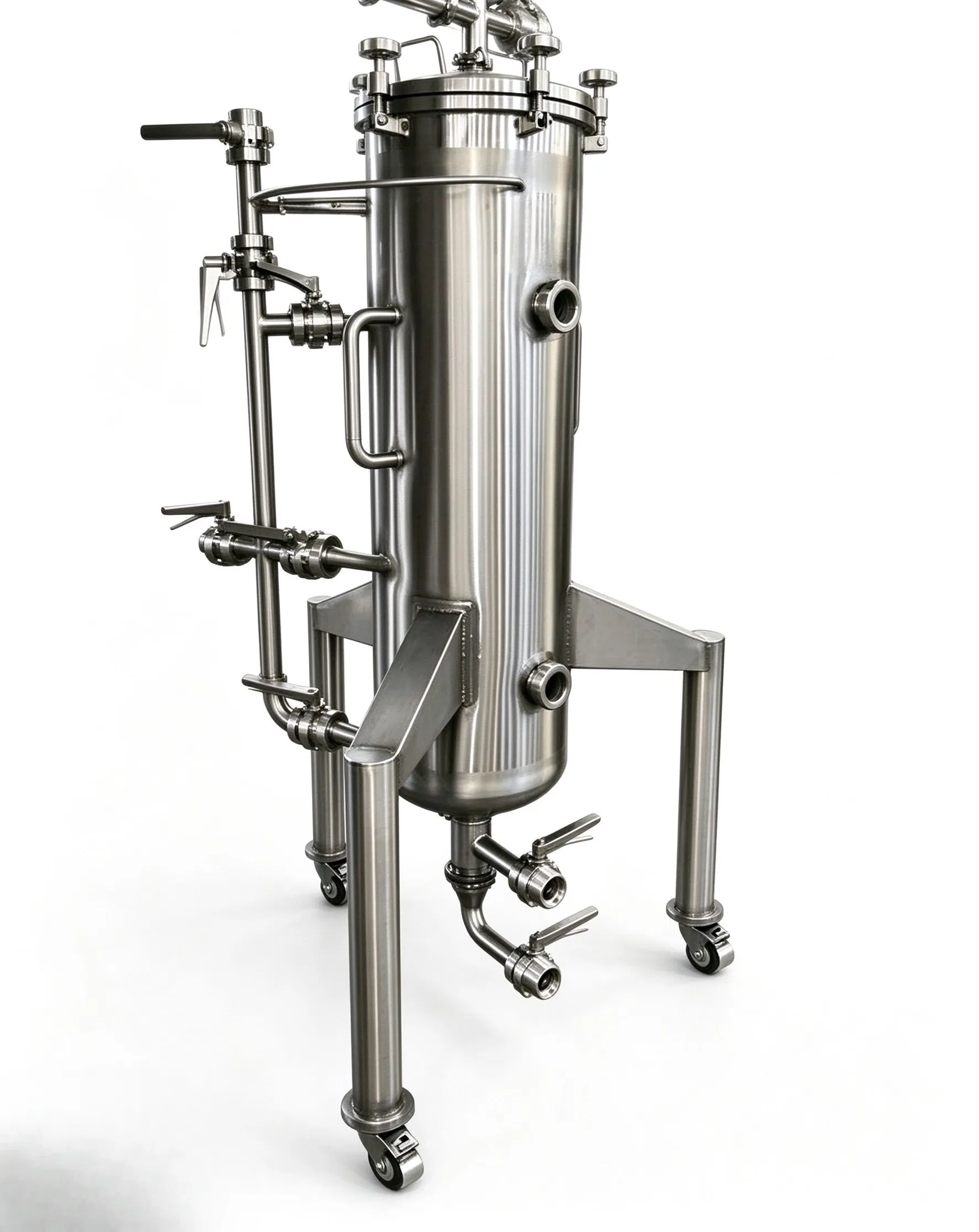

Stainless steel hop gun for dry hopping

The Hop Gun is a closed-loop dry hopping device engineered for craft breweries.By dosing whole-leaf or pellet hops directly into fermenting beer or transfer lines, so it prevents any oxygen exposure to the batch. Consequently, aroma preservation improves significantly, oxidation risk drops, and the mess of manual dry hopping is completely eliminated.

How It Works

Beer is circulated from the fermenter through the Hop Gun, where it passes through a bed of hops held in a perforated basket or chamber. The high-velocity flow extracts volatile oils and aromatics before returning the hopped beer to the tank — all under closed, CO₂-purged conditions. As a result, tanks remain sealed throughout the process, oxygen pickup is avoided entirely, and trub loss is minimized to nearly zero.

Hop gun Specifications

Material: SUS304 / SUS316 food-grade stainless steel

Capacity: 50L / 100L / 150L / 200L (custom on request)

Tank Thickness: Inner 3mm / External 2mm

Operating Pressure: 0–3 bar (adjustable, pressure vessel certified)

Connection: Tri-clamp / DIN / SMS fittings, sized to your piping

Cooling Method: Glycol jacket optional for temperature-sensitive batches

Control: Manual valve control or PLC-integrated pump sequencing

Voltage: 220V / 380V (for integrated pump option)

Power: Adjustable per pump specification

Dimensions: Customizable to your layout

Weight: Approx. 80–150 KG depending on capacity

Inspection: Video outgoing-inspection provided

Test Report: Provided

So please conact with us for a quotation if you need this products.
